snowboyで遊んでみる
やりたいこと
Hey , SiriやOK, GoogleのようなHotWordを変更して、音声認識を行いたい
snowboy
install & demo
ubuntu16.04でも動いた♪
install -> https://s3-us-west-2.amazonaws.com/snowboy/snowboy-releases/ubuntu1404-x86_64-1.1.1.tar.bz2
pip install pyaudio
Snowboy Hotword DetectionのCreate Hotwordでtest.pmdlを作成
python demo.py test.pmdl
demo.py
import snowboydecoder import sys import signal interrupted = False def signal_handler(signal, frame): global interrupted interrupted = True def interrupt_callback(): global interrupted return interrupted if len(sys.argv) == 1: print("Error: need to specify model name") print("Usage: python demo.py your.model") sys.exit(-1) model = sys.argv[1] signal.signal(signal.SIGINT, signal_handler) detector = snowboydecoder.HotwordDetector(model, sensitivity=0.5) print('Listening... Press Ctrl+C to exit') detector.start(detected_callback=snowboydecoder.ding_callback, interrupt_check=interrupt_callback, sleep_time=0.03) detector.terminate()
このdetected_callback=snowboydecoder.ding_callbackに自作関数を入れる。
そうすると、HotWordが入った時に関数が呼ばれる。
注意
Do not append () to your callback function: the correct way is to assign detected_callback=your_func instead of detected_callback=your_func(). However, what if you have parameters to assign in your callback functions? Use a lambda function! So your callback would look like: callback=lambda: callback_function(parameters).
参考
tf-pose-estimationのコード理解
やりたいこと
tf-pose-estimationを用いた面白いタスクを作るため、tf-pose-estimationを理解する
いつのまにかROS対応してる。素晴らしい。
rosでの動かし方
sudo apt-get update
sudo apt-get upgrade
sudo apt-get install ros-kinetic-video-stream-opencv
sudo apt-get install ros-kinetic-image-view
git clone https://github.com/ildoonet/ros-video-recorder.git
git clone https://github.com/ildoonet/tf-pose-estimation.git
pip install -U setuptools
pip install -r tf-pose-estimation/requirements.txt
catkin_make
roslaunch tfpose_ros demo_video.launch
Tips
launchのモデルをmobilenetに変更するとCPU only でもかろうじて動く!
msg
BodyPartElm.msg
int32 part_id float32 x float32 y float32 confidence
Person,msg
BodyPartElm[] body_part
Persons.msg
Person[] persons uint32 image_w uint32 image_h Header header
broadcaster_ros.py
TfPoseEstimatorROSのノード
Personsのmsg型に変換
def humans_to_msg(humans): persons = Persons() for human in humans: person = Person() for k in human.body_parts: body_part = human.body_parts[k] body_part_msg = BodyPartElm() body_part_msg.part_id = body_part.part_idx body_part_msg.x = body_part.x body_part_msg.y = body_part.y body_part_msg.confidence = body_part.score person.body_part.append(body_part_msg) persons.persons.append(person) return persons
以下のようにしてpathを取得することができる
w, h = model_wh(model) graph_path = get_graph_path(model) rospack = rospkg.RosPack() graph_path = os.path.join(rospack.get_path('tfpose_ros'), graph_path)
estimator.py
from estimator import TfPoseEstimator
画像から予測するスクリプトで
class BodyPart: """ part_idx : part index(eg. 0 for nose) x, y: coordinate of body part score : confidence score """ __slots__ = ('uidx', 'part_idx', 'x', 'y', 'score') def __init__(self, uidx, part_idx, x, y, score): self.uidx = uidx self.part_idx = part_idx self.x, self.y = x, y self.score = score def get_part_name(self): return CocoPart(self.part_idx) def __str__(self): return 'BodyPart:%d-(%.2f, %.2f) score=%.2f' % (self.part_idx, self.x, self.y, self.score)
で構成されたhuman情報を返す
新しいpythonの知識
slots: ``__slots__``を使ってメモリを節約 - Qiita
Pythonで__slots__を使う - StoryEdit 開発日誌
@staticmethod: Pythonの「@staticmethod」はどのように役立つのか - モジログ
def str_(self): str()メソッドは、print(x)するときにも呼び出される。
networks.py
from networks import get_graph_path, model_wh
def get_graph_path(model_name): return { 'cmu_640x480': './models/graph/cmu_640x480/graph_opt.pb', 'cmuq_640x480': './models/graph/cmu_640x480/graph_q.pb', 'cmu_640x360': './models/graph/cmu_640x360/graph_opt.pb', 'cmuq_640x360': './models/graph/cmu_640x360/graph_q.pb', 'mobilenet_thin_432x368': './models/graph/mobilenet_thin_432x368/graph_opt.pb', }[model_name] def model_wh(model_name): width, height = model_name.split('_')[-1].split('x') return int(width), int(height)
run_webcam.py
tf-pose-estimation/run_webcam.py at master · ildoonet/tf-pose-estimation · GitHub
引数
parser.add_argument('--camera', type=int, default=0) : カメラ番号の選択
parser.add_argument('--zoom', type=float, default=1.0) : zoom
parser.add_argument('--model', type=str, default='mobilenet_thin_432x368', help='cmu_640x480 / cmu_640x360 / mobilenet_thin_432x368') : モデルを選択できる。mobilenetが高速。
zoom
if args.zoom < 1.0: canvas = np.zeros_like(image) img_scaled = cv2.resize(image, None, fx=args.zoom, fy=args.zoom, interpolation=cv2.INTER_LINEAR) dx = (canvas.shape[1] - img_scaled.shape[1]) // 2 dy = (canvas.shape[0] - img_scaled.shape[0]) // 2 canvas[dy:dy + img_scaled.shape[0], dx:dx + img_scaled.shape[1]] = img_scaled image = canvas elif args.zoom > 1.0: img_scaled = cv2.resize(image, None, fx=args.zoom, fy=args.zoom, interpolation=cv2.INTER_LINEAR) dx = (img_scaled.shape[1] - image.shape[1]) // 2 dy = (img_scaled.shape[0] - image.shape[0]) // 2 image = img_scaled[dy:image.shape[0], dx:image.shape[1]]
Google AIY Voice Kitで遊んでみる
やりたいこと
設定
ハード: https://yuki-no-yabo.com/how-to-make-google-aiy-voice-kit/
ソフト: https://yuki-no-yabo.com/software-install-for-aiy-voice-kit/
デモ
【Google AIY Voice Kit】Google Assistant APIの設定からデモプログラムの実行まで
Lチカ
Google AIY Voice Kitで電子工作~LEDライトを点灯~
日本語化
AIY Projects kitを試してみよう | スイッチサイエンス マガジン
現状、aiyライブラリの発話関数は日本語対応してなさそう
AIYスピーカーを、ほぼ日本語版Google Homeに【Google Assistant SDKアップデート】
Voice Kitなしで実行
AIY ProjectのVoice KitをVocie Kitなしでやってみた - 知的好奇心 for IoT
GCPサンプル
サンプル アプリケーション | Google Cloud Speech API ドキュメント | Google Cloud Platform
Cloud Speech API で音声をテキストに変換する
HotWord
snowboy/examples/Python at master · Kitt-AI/snowboy · GitHub
Snowboy Hotword DetectionをRaspberry Piで動かす - Qiita
python - How to set up wake word for Google Assistant SDK on a Raspberry Pi - Stack Overflow
virtualenvの使い方・仕組み
やりたいこと
pythonのいろんなライブラリを他の環境を汚さず試したい
使い方
インストールと起動
pip install virtualenv
virtualenv my_env
source myenv/bin/activate
環境の保存
- pip freeze
無効化と削除
deactivate
rm -rf myenv/
ros x vertualenv
pip install catkin_tools
pip install empy
pip install rospkg
How to install and launch Python node inside a virtualenv? - ROS Answers: Open Source Q&A Forum
python 3.x - After install ROS Kinetic, cannot import OpenCV - Stack Overflow
参考記事
virtualenv 基本的なコマンド使い方メモ - Qiita
Pythonの仮想環境を構築できるvirtualenvを使ってみる - Qiita
Pythonの仮想環境構築(2017年版) pyenvとpyenv-virtualenvとvirtualenvとvirtualenvwrapperとpyvenvとvenv - Qiita
Python で仮想環境管理 venv の使い方 - Qiita
virtualenvを使っていろいろなライブラリを手軽にためそう | Developers.IO
virtualenvのインストール、使い方 - CHANyoshiのブログ
仕組み
ToDo
参考記事
TX2を動かしてみる(JetPack3.1トライ)
- やりたいこと
- 結果
- Wiki
- JetPack
- 手順
- TX2のモード選択
- キャリアボード
- Deep Learning フレームワーク&OpenCV&ROSインストール
- OpenPoseインストール
- YOLOインストール
- CUDA8.0のインストール
- 参考
やりたいこと
TX2でDeepLearningの何かしらのフレームワークとROSを動かす

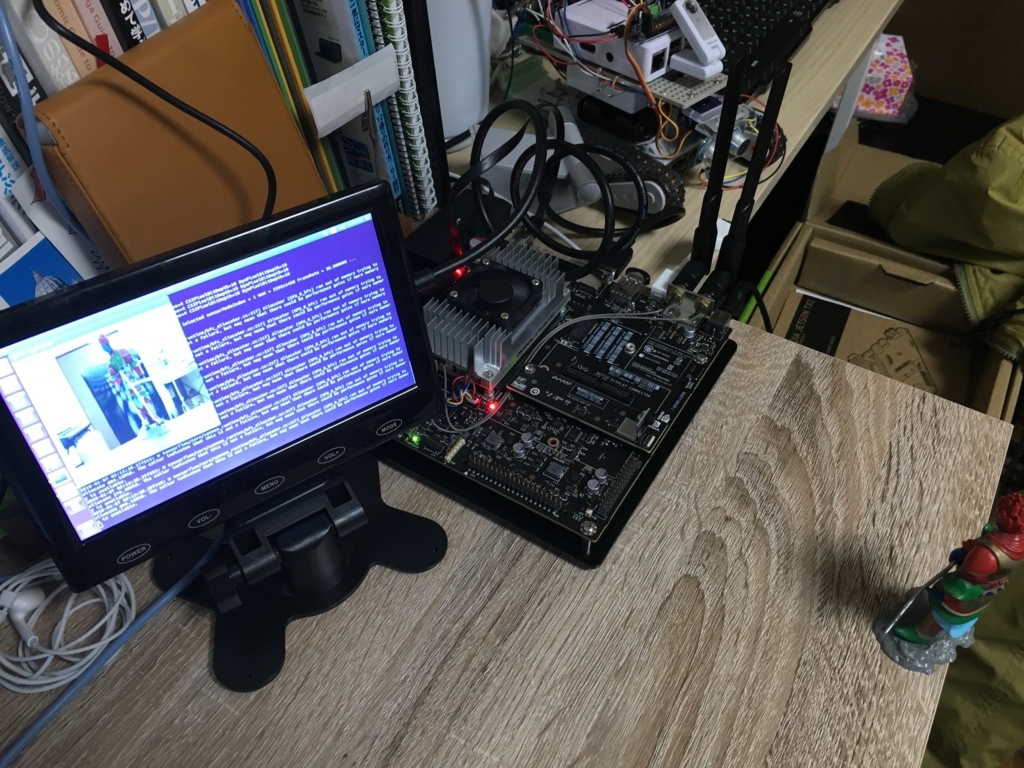

結果
以下の記事を参考にtensorflowのインストールとOpenPoseの動作確認。
mobilenetのモデルでTX2でも8fpsくらいでる。
NVIDIA Jetson TX2でTensorFlowによる人体姿勢推定プログラムを動かせるようになるまで - Qiita
以下を参考にROSのインストール。超簡単。
Install Robot Operating System (ROS) on NVIDIA Jetson TX2 - YouTube
Wiki
JetPack
Version 3.1を用いる
- HPからダウンロード:
Jetson Download Center | NVIDIA Developer
手順
以下を参照
Force USB Recovery Modeの仕方はQuick Start Guide参照
参考:
Double Your Deep Learning Performance with JetPack 2.3 - YouTube
TX2のモード選択
用途に応じて消費電力と性能を選択するモードが用意されている
NVPModel - NVIDIA Jetson TX2 Development Kit - JetsonHacks
CSI camera
開発キットにはCSIカメラが取り付けられており、USBカメラに比べて処理がはやい
CSI Cameras on the TX2 (The Easy Way) - Peter Moran's Blog
JetsonTX2 OnBoardCam · eiichiromomma/CVMLAB Wiki · GitHub
ROSでCSIカメラをlaunch
キャリアボード
Elroy Carrier for NVIDIA® Jetson™ TX2 & Jetson™ TX1 - Connect Tech Inc.
Astro Carrier for NVIDIA® Jetson™ TX2 & Jetson™ TX1 - Connect Tech Inc.
Sprocket Carrier for NVIDIA® Jetson™ TX2 and Jetson™ TX1 - Connect Tech Inc.
価格
2万円:小型・低スペック CTI Orbitty Carrier for NVIDIA Jetson TX2/TX1
5万円:小型・高スペック ASG001 by Connect Tech | 1CASG001 | wdlsystems.com
性能比較
Deep Learning フレームワーク&OpenCV&ROSインストール
Caffe install
Caffe Deep Learning Framework - NVIDIA Jetson TX2 - YouTube
Tensorflow install
TensorFlow Install on NVIDIA Jetson TX2 - YouTube
JetsonTX2 Tensorflow · eiichiromomma/CVMLAB Wiki · GitHub
How to install TensorFlow on the NVIDIA Jetson TX2? · NVIDIA Jetson TX2 Recipes
Keras
Jetson TX2にKerasをインストールする - Qiita
Pytorch install
GitHub - andrewadare/jetson-tx2-pytorch: Installing PyTorch on the Nvidia Jetson TX1/TX2
Install procedure for pyTorch on NVIDIA Jetson TX1/TX2 · GitHub
OpenCV install
TensorFlow Install on NVIDIA Jetson TX2 - YouTube
ROS install
Install Robot Operating System (ROS) on NVIDIA Jetson TX2 - YouTube
OpenPoseインストール
OpenCV3を使うときはMakefieのOPENCV_VERSIONの設定を3にしてアンコメント
Tensorflow
NVIDIA Jetson TX2でTensorFlowによる人体姿勢推定プログラムを動かせるようになるまで - Qiita
Caffe
JetsonTX2 OpenPose · eiichiromomma/CVMLAB Wiki · GitHub
Issue
can't find hdf5.h when build caffe · Issue #156 · NVIDIA/DIGITS · GitHub
TX2用のinstall scriptsを使わない場合はMakefileを以下の用に書き換える必要がある↓
diff --git a/3rdparty/caffe/Makefile b/3rdparty/caffe/Makefile index 8674f3a..46028f7 100644 --- a/3rdparty/caffe/Makefile +++ b/3rdparty/caffe/Makefile @@ -181,7 +181,7 @@ ifneq ($(CPU_ONLY), 1) LIBRARIES := cudart cublas curand endif -LIBRARIES += glog gflags protobuf boost_system boost_filesystem m hdf5_hl hdf5 +LIBRARIES += glog gflags protobuf boost_system boost_filesystem m hdf5_serial_hl hdf5_serial # handle IO dependencies USE_LEVELDB ?= 1 diff --git a/3rdparty/caffe/Makefile.config.Ubuntu16_cuda8.example b/3rdparty/caffe/Makefile.config.Ubuntu16_cuda8.example index fb92360..1f62114 100644 --- a/3rdparty/caffe/Makefile.config.Ubuntu16_cuda8.example +++ b/3rdparty/caffe/Makefile.config.Ubuntu16_cuda8.example @@ -100,7 +100,7 @@ PYTHON_LIB := /usr/lib /usr/local/lib # Whatever else you find you need goes here. INCLUDE_DIRS := $(PYTHON_INCLUDE) /usr/local/include /usr/include/hdf5/serial -LIBRARY_DIRS := $(PYTHON_LIB) /usr/local/lib /usr/lib /usr/lib/x86_64-linux-gnu /usr/lib/x86_64-linux-gnu/hdf5/serial +LIBRARY_DIRS := $(PYTHON_LIB) /usr/local/lib /usr/lib /usr/lib/aarch64-linux-gnu /usr/lib/aarch64-linux-gnu/hdf5/serial # If Homebrew is installed at a non standard location (for example your home directory) and you use it for general dependencies # INCLUDE_DIRS += $(shell brew --prefix)/include diff --git a/Makefile b/Makefile index 8e2109b..32a093e 100644 --- a/Makefile +++ b/Makefile @@ -146,7 +146,7 @@ ifneq ($(CPU_ONLY), 1) endif # LIBRARIES += glog gflags boost_system boost_filesystem m hdf5_hl hdf5 caffe -LIBRARIES += glog gflags boost_system boost_filesystem m hdf5_hl hdf5 +LIBRARIES += glog gflags boost_system boost_filesystem m hdf5_serial_hl hdf5_serial # handle IO dependencies USE_LEVELDB ?= 1 diff --git a/ubuntu/Makefile.config.Ubuntu16_cuda8.example b/ubuntu/Makefile.config.Ubuntu16_cuda8.example index c2940dc..053da67 100644 --- a/ubuntu/Makefile.config.Ubuntu16_cuda8.example +++ b/ubuntu/Makefile.config.Ubuntu16_cuda8.example @@ -78,7 +78,7 @@ CAFFE_DIR := 3rdparty/caffe/distribute # Whatever else you find you need goes here. INCLUDE_DIRS := /usr/local/include /usr/include/hdf5/serial -LIBRARY_DIRS := /usr/local/lib /usr/lib /usr/lib/x86_64-linux-gnu /usr/lib/x86_64-linux-gnu/hdf5/serial +LIBRARY_DIRS := /usr/local/lib /usr/lib /usr/lib/aarch64-linux-gnu /usr/lib/aarch64-linux-gnu/hdf5/serial # If Homebrew is installed at a non standard location (for example your home directory) and you use it for general dependencies # INCLUDE_DIRS += $(shell brew --prefix)/include
YOLOインストール
JetsonTX2 Yolo · eiichiromomma/CVMLAB Wiki · GitHub
CUDA8.0のインストール
https://devtalk.nvidia.com/default/topic/1001520/setting-up-cuda-manually-on-tx2/
参考
JetsonTX2 · eiichiromomma/CVMLAB Wiki · GitHub
https://devtalk.nvidia.com/default/topic/1027463/jetson-tx2/jetpack-3-2-installation-on-tx2-stops/
JetsonTX2初期セットアップ(Jetpack)からサンプルのコンパイルまでの手順 - Qiita
bash: cannot create temp file for here-document: No space left on device · GitHub
TX2を動かしてみる(JetPack3.2トライ)
やりたいこと
TX2でDeepLearningの何かしらのフレームワークとROSを動かす
結果
ToDo
Wiki
JetPack
最新のVersion 3.2を用いる
- HPからダウンロード: Jetson Download Center | NVIDIA Developer
手順
以下を参照
Force USB Recovery Modeの仕方はQuick Start Guide参照
参考:
Double Your Deep Learning Performance with JetPack 2.3 - YouTube
Docker install
Home · open-horizon/cogwerx-jetson-tx2 Wiki · GitHub
cogwerx-jetson-tx2/tx2-post-setup at master · open-horizon/cogwerx-jetson-tx2 · GitHub
Deep Learning install
GitHub - open-horizon/cogwerx-jetson-tx2: Deep learning builds for NVIDIA Jetson TX2
Caffe install
Caffe Deep Learning Framework - NVIDIA Jetson TX2 - YouTube
Tensorflow install
TensorFlow Install on NVIDIA Jetson TX2 - YouTube
JetsonTX2 Tensorflow · eiichiromomma/CVMLAB Wiki · GitHub
How to install TensorFlow on the NVIDIA Jetson TX2? · NVIDIA Jetson TX2 Recipes
Keras
Jetson TX2にKerasをインストールする - Qiita
OpenCV install
TensorFlow Install on NVIDIA Jetson TX2 - YouTube
ROS install
Install Robot Operating System (ROS) on NVIDIA Jetson TX2 - YouTube
Pytorch install
GitHub - andrewadare/jetson-tx2-pytorch: Installing PyTorch on the Nvidia Jetson TX1/TX2
Install procedure for pyTorch on NVIDIA Jetson TX1/TX2 · GitHub
OpenPose
Tensorflow
NVIDIA Jetson TX2でTensorFlowによる人体姿勢推定プログラムを動かせるようになるまで - Qiita
Caffe
JetsonTX2 OpenPose · eiichiromomma/CVMLAB Wiki · GitHub
YOLO
JetsonTX2 Yolo · eiichiromomma/CVMLAB Wiki · GitHub
CSI camera
CSI Cameras on the TX2 (The Easy Way) - Peter Moran's Blog
JetsonTX2 OnBoardCam · eiichiromomma/CVMLAB Wiki · GitHub
CUDA8.0のインストール
https://devtalk.nvidia.com/default/topic/1001520/setting-up-cuda-manually-on-tx2/
参考
JetsonTX2 · eiichiromomma/CVMLAB Wiki · GitHub
https://devtalk.nvidia.com/default/topic/1027463/jetson-tx2/jetpack-3-2-installation-on-tx2-stops/
ROS x Docker x ネットワーク のお勉強
やりたいこと
dockerコンテナとホストPCでros messageの通信を行いたい
ROS
ROBOT PCでroscoreを起動
HOST PC
export ROS_IP = (HOST PCのIP)
export ROS_MASTER_URI=http://(ROBOTのIP):11311
- 正確にはroscoreが立ち上がっているPCのIP
ROBOT PC
export ROS_IP = (ROBOT PCのIP)
exprot ROS_MASTER_URI=http://(ROBOTのIP):11311
確認方法
ROBOT_PC
- $ rostopic pub -r 10 /topic_name std_msgs/String hello
HOST_PC
- $ rostopic echo /topic_name
参考:
ja/ROS/Tutorials/MultipleMachines - ROS Wiki
複数 PC に分散したノードの ROS を使った通信 - Daily Tech Blog
ROS 複数のPCを使ってノードを走らせる場合。: マイコン漬け
ROS x Docker
上記と基本的には同じ。
下記のように
docker inspect -f "{{.NetworkSettings.IPAddress}}" CONTAINER
でIPを調べてROS_IPにセットする。
docker-compose で立ち上げたコンテナの IP アドレスを調べる - Qiita
TODO: --net hostの時の設定について調べる
コンテナのIP固定の方法
Public accessible IP in container (like bridge network in VirtualBox) - DockerEngine - Docker Forums
参考:
Docker + ROS(kinetic)でチュートリアル - Qiita
Exposing ROS Containers to Host Machine - ROS Answers: Open Source Q&A Forum
Small ROS Network Example · GitHub
Challenges with running ROS on Kubernetes | Service Engineering (ICCLab & SPLab)
Docker v1.9のマルチホストネットワーク機能を使ったROS通信が可能か検証してみた - Qiita
Docker単体
参考:
Docker の基本学習 ~ コンテナ間のリンク - Qiita
マルチホストでのDocker Container間通信 第1回: Dockerネットワークの基礎 - UZABASE Tech Blog
Dockerのマルチホストネットワークで複数ホスト間を繋ぐ仮想ネットワークを作る(Dockerの最新機能を使ってみよう:第1回) | さくらのナレッジ
