pytorch,keras,chainer x ROSのDockerfileを作ってみる
やりたいこと
ros x deep learningのいろいろなDockerfileを作ってどんな環境でもすぐに開発ができるようにする
以下
ubuntu16.04
ros-kinetic
をベースとしている
chainer
cupy==1.0.3 chainer==2.1.0
Dockerfile
FROM nvidia/cuda:8.0-cudnn5-devel-ubuntu16.04 RUN apt-get update -y && \ apt-get install -y --no-install-recommends \ python-dev \ python-setuptools \ python-pip && \ rm -rf /var/lib/apt/lists/* /var/cache/apt/archives/* RUN pip install --upgrade pip RUN pip install cupy==1.0.3 chainer==2.1.0 RUN pip install matplotlib # install packages RUN apt-get update && apt-get install -y --no-install-recommends \ dirmngr \ gnupg2 \ && rm -rf /var/lib/apt/lists/* # setup keys RUN apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv-keys 421C365BD9FF1F717815A3895523BAEEB01FA116 # setup sources.list RUN echo "deb http://packages.ros.org/ros/ubuntu xenial main" > /etc/apt/sources.list.d/ros-latest.list # install bootstrap tools RUN apt-get update && apt-get install --no-install-recommends -y \ python-rosdep \ python-rosinstall \ python-vcstools \ && rm -rf /var/lib/apt/lists/* # setup environment ENV LANG C.UTF-8 ENV LC_ALL C.UTF-8 # bootstrap rosdep RUN rosdep init \ && rosdep update # install ros packages ENV ROS_DISTRO kinetic RUN apt-get update && apt-get install -y \ ros-kinetic-ros-core=1.3.1-0* \ && rm -rf /var/lib/apt/lists/* # install cv2 RUN apt-get update && apt-get install -y ros-kinetic-cv-bridge # install editor and tools RUN apt-get install -y emacs RUN apt-get install -y tmux RUN apt-get install -y python-tk # setup entrypoint COPY ./ros_entrypoint.sh / ENTRYPOINT ["/ros_entrypoint.sh"] CMD ["bash"]
docker images: https://hub.docker.com/r/einstein25/chainer-ros-gpu/
pytorch
gpuが使えているかは
print torch.cuda.is_available()
で確認
Dockerfile
FROM nvidia/cuda:8.0-cudnn5-devel-ubuntu16.04 RUN apt-get update -y && \ apt-get install -y --no-install-recommends \ python-dev \ python-setuptools \ python-pip && \ rm -rf /var/lib/apt/lists/* /var/cache/apt/archives/* RUN pip install --upgrade pip RUN pip install http://download.pytorch.org/whl/cu80/torch-0.3.0.post4-cp27-cp27mu-linux_x86_64.whl RUN pip install torchvision RUN pip install matplotlib # ros install # install packages RUN apt-get update && apt-get install -y --no-install-recommends \ dirmngr \ gnupg2 \ && rm -rf /var/lib/apt/lists/* # setup keys RUN apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv-keys 421C365BD9FF1F717815A3895523BAEEB01FA116 # setup sources.list RUN echo "deb http://packages.ros.org/ros/ubuntu xenial main" > /etc/apt/sources.list.d/ros-latest.list # install bootstrap tools RUN apt-get update && apt-get install --no-install-recommends -y \ python-rosdep \ python-rosinstall \ python-vcstools \ && rm -rf /var/lib/apt/lists/* # setup environment ENV LANG C.UTF-8 ENV LC_ALL C.UTF-8 # bootstrap rosdep RUN rosdep init \ && rosdep update # install ros packages ENV ROS_DISTRO kinetic RUN apt-get update && apt-get install -y \ ros-kinetic-ros-core=1.3.1-0* \ && rm -rf /var/lib/apt/lists/* # install cv2 RUN apt-get update && apt-get install -y ros-kinetic-cv-bridge # setup entrypoint COPY ./ros_entrypoint.sh / # install editor and tools RUN apt-get install -y emacs RUN apt-get install -y tmux RUN apt-get install -y python-tk ENTRYPOINT ["/ros_entrypoint.sh"] CMD ["bash"]
docker images: https://hub.docker.com/r/einstein25/pytorch-ros-gpu/
keras
Dockerfile
FROM nvidia/cuda:8.0-cudnn6-devel-ubuntu16.04 RUN apt-get update -y && \ apt-get install -y --no-install-recommends \ python-dev \ python-setuptools \ python-pip && \ rm -rf /var/lib/apt/lists/* /var/cache/apt/archives/* RUN pip install --upgrade pip RUN pip install matplotlib RUN pip install tensorflow-gpu keras # ros install # install packages RUN apt-get update && apt-get install -y --no-install-recommends \ dirmngr \ gnupg2 \ && rm -rf /var/lib/apt/lists/* # setup keys RUN apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv-keys 421C365BD9FF1F717815A3895523BAEEB01FA116 # setup sources.list RUN echo "deb http://packages.ros.org/ros/ubuntu xenial main" > /etc/apt/sources.list.d/ros-latest.list # install bootstrap tools RUN apt-get update && apt-get install --no-install-recommends -y \ python-rosdep \ python-rosinstall \ python-vcstools \ && rm -rf /var/lib/apt/lists/* # setup environment ENV LANG C.UTF-8 ENV LC_ALL C.UTF-8 # bootstrap rosdep RUN rosdep init \ && rosdep update # install ros packages ENV ROS_DISTRO kinetic RUN apt-get update && apt-get install -y \ ros-kinetic-ros-core=1.3.1-0* \ && rm -rf /var/lib/apt/lists/* # install cv2 RUN apt-get update && apt-get install -y ros-kinetic-cv-bridge # setup entrypoint COPY ./ros_entrypoint.sh / # install editor and tools RUN apt-get install -y emacs RUN apt-get install -y tmux RUN apt-get install -y python-tk ENTRYPOINT ["/ros_entrypoint.sh"] CMD ["bash"]
docker images: https://hub.docker.com/r/einstein25/keras-ros-gpu/
動作確認
(container)# apt install wget (container)# wget https://raw.githubusercontent.com/fchollet/keras/master/examples/mnist_cnn.py (container)# python mnist_cnn.py
Dockerhubを使ってみる
やりたいこと
dockerhubでimageを管理したい
dockerhubにpushする手順
アカウントの登録: https://hub.docker.com/
Create Repository
imageのrepository nameをdockerhubのrepository nameと揃える
- ex: $ docker tag [image ID] einstein25/chainer-ros-gpu:v1
pushする
- ex: $ docker push einstein25/chainer-ros-gpu:v1
That's all ! 簡単!!
ROS x Dockerのお勉強
やりたいこと
ROSをDockerで動かしたい。
参考資料
Docker + ROS(kinetic)でチュートリアル - Qiita
https://hub.docker.com/r/_/ros/
ROS-Docker-tutorial.md · GitHub
docs/ros at master · docker-library/docs · GitHub
Mac版DockerでROSを動かしてみたメモ - Qiita
ロボット向けアプリケーションをDockerコンテナで動かす - Qiita
Ubuntu16.04上でDocerを使いROSを動かす: たこ104のブログ
ros.youtalk.jp — ROS 2 + Dockerによるフォールトトレランス実践 (1)
参考動画
Dockerfile
FROM ros:kinetic # install ros tutorials packages RUN apt-get update && apt-get install -y RUN apt-get install -y ros-kinetic-ros-tutorials \ ros-kinetic-common-tutorials \ && rm -rf /var/lib/apt/lists/
Build
- docker build --tag ros:ros-tutorials .
Tutorial
master, talker, listenerの3つを動作させ,talkerが発するメッセージをlistenerが聞く
networkの作成
- docker network create rosnet
masterの起動
- docker run -it --net rosnet --name master ros:ros-tutorials roscore
talkerの起動
- docker run -it --net rosnet --name talker --env ROS_HOSTNAME=talker --env ROS_MASTER_URI=http://master:11311 ros:ros-tutorials rosrun roscpp_tutorials talker
listenerの起動
- docker run -it --net rosnet --name listener --env ROS_HOSTNAME=listener --env ROS_MASTER_URI=http://master:11311 ros:ros-tutorials rosrun roscpp_tutorials listener
Docker Compose
Now that you have an appreciation for bootstrapping a distributed ROS example manually, lets try and automate it using docker-compose.
rosでいうlaunchファイル的なもの
docker-compose.yml
version: '2' services: master: build: . container_name: master command: - roscore talker: build: . container_name: talker environment: - "ROS_HOSTNAME=talker" - "ROS_MASTER_URI=http://master:11311" command: rosrun roscpp_tutorials talker listener: build: . container_name: listener environment: - "ROS_HOSTNAME=listener" - "ROS_MASTER_URI=http://master:11311" command: rosrun roscpp_tutorials listener
docker build -> runを実行
- 起動方法
- docker-compose up
Docker composeの参考
docker-composeを使うと複数コンテナの管理が便利に - Qiita
ROS x Docker x GUI
docker/Tutorials/GUI - ROS Wiki
手順
xhost +
以下コマンドを実行
docker run -it \ --env="DISPLAY" \ --env="QT_X11_NO_MITSHM=1" \ --volume="/tmp/.X11-unix:/tmp/.X11-unix:rw" \ osrf/ros:indigo-desktop-full \ rqt export containerId=$(docker ps -l -q)
ROS(kinetic) x Docker x GPU
docker/Tutorials/Hardware Acceleration - ROS Wiki
1: Dockerfileの準備
FROM osrf/ros:kinetic-desktop-full # nvidia-docker hooks LABEL com.nvidia.volumes.needed="nvidia_driver" ENV PATH /usr/local/nvidia/bin:${PATH} ENV LD_LIBRARY_PATH /usr/local/nvidia/lib:/usr/local/nvidia/lib64:${LD_LIBRARY_PATH}
2: build
docker build --tag ros:nvidia .
3: run
nvidia-docker run -it \ --env="DISPLAY" \ --env="QT_X11_NO_MITSHM=1" \ --volume="/tmp/.X11-unix:/tmp/.X11-unix:rw" \ ros:nvidia \ bash -c "roscore & rosrun rviz rviz"
うごけばおけぃ
Deep Learningのフレームワークをいろいろ動かす
Dockerfile
以下を追記
RUN apt-get update RUN apt-get install emacs RUN apt-get install tmux RUN apt-get install wget RUN apt-get install -y python-pip RUN pip install tensorflow-gpu keras RUN pip install http://download.pytorch.org/whl/cu80/torch-0.3.0.post4-cp27-cp27mu-linux_x86_64.whl RUN pip install torchvision
kerasを動かす
docker cp cuda-8.0/ [コンテナID]:/usr/local/
コンテナ内でPATHの設定
wget https://raw.githubusercontent.com/fchollet/keras/master/examples/mnist_cnn.py
python mnist_cnn.py
pytorchを動かす
- python pytorch_sample.py
線形回帰をといてみる
TODO
torch.nn — PyTorch master documentation
chainer
FROM nvidia/cuda:8.0-cudnn5-devel-ubuntu16.04 RUN apt-get update -y && \ apt-get install -y --no-install-recommends \ python-dev \ python-setuptools \ python-pip && \ rm -rf /var/lib/apt/lists/* /var/cache/apt/archives/* RUN pip install --upgrade pip RUN pip install cupy==1.0.3 chainer==2.1.0 # install packages RUN apt-get update && apt-get install -y --no-install-recommends \ dirmngr \ gnupg2 \ && rm -rf /var/lib/apt/lists/* # setup keys RUN apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv-keys 421C365BD9FF1F717815A3895523BAEEB01FA116 # setup sources.list RUN echo "deb http://packages.ros.org/ros/ubuntu xenial main" > /etc/apt/sources.list.d/ros-latest.list # install bootstrap tools RUN apt-get update && apt-get install --no-install-recommends -y \ python-rosdep \ python-rosinstall \ python-vcstools \ && rm -rf /var/lib/apt/lists/* # setup environment ENV LANG C.UTF-8 ENV LC_ALL C.UTF-8 # bootstrap rosdep RUN rosdep init \ && rosdep update # install ros packages ENV ROS_DISTRO kinetic RUN apt-get update && apt-get install -y \ ros-kinetic-ros-core=1.3.1-0* \ && rm -rf /var/lib/apt/lists/* # install cv2 RUN apt-get update && apt-get install -y ros-kinetic-cv-bridge # install editor and tools RUN apt-get install emacs RUN apt-get install tmux # setup entrypoint COPY ./ros_entrypoint.sh / ENTRYPOINT ["/ros_entrypoint.sh"] CMD ["bash"]
TODO
- TX2 x ROS上でpytorchを動かす
Dockerのお勉強2(+α:for DeepLearning)
- やりたいこと
- 公式ドキュメント(日本語)
- Dockerfileの書き方
- Dockerfileのビルド
- コンテナの作成とログイン
- サンプルの実行
- sudo権限をつける
- 起動中のコンテナに入る
- コンテナからイメージの作成
- コンテナとイメージの削除方法
- コンテナ名の変更
- ホスト<->コンテナ間のやりとり
- Docker imageのtagを取得する方法
- Dockerイメージのコピーと読み込み
- Dockerからデバイスを読み込む方法
- DockerからGUIを表示する方法
- Docker上でwebカメラを読み込みOpenCVのimshowなどをGUIで表示する方法
- おまけ1: pytorchでも動かしてみる
- おまけ2: chainerでも動かしてみる
- 参考
やりたいこと
Dockerfileを使ってPC環境を汚さずに、いろいろなDeep Learningのフレームワークを使いたい
公式ドキュメント(日本語)
Docker ドキュメント日本語化プロジェクト — Docker-docs-ja 17.06.Beta ドキュメント
Dockerfileの書き方
例: keras
FROM nvidia/cuda:8.0-cudnn6-runtime RUN apt update && apt install -y python3-pip RUN pip3 install tensorflow-gpu keras
Dockerfileのビルド
コンテナの作成とログイン
サンプルの実行
(container)# apt install wget (container)# wget https://raw.githubusercontent.com/fchollet/keras/master/examples/mnist_cnn.py (container)# python3 mnist_cnn.py
sudo権限をつける
sudo usermod -aG docker $USER
起動中のコンテナに入る
コンテナからイメージの作成
sudo nvidia-docker stop [コンテナID]
sudo nvidia-docker commit [コンテナID] custom-docker-gpu-keras-workspace
コンテナとイメージの削除方法
コンテナ
docker ps -a
docker rm [コンテナID]
コンテナの一括削除
- sudo docker rm `sudo docker ps -a -q`
イメージ
docker images
docker rmi -f [イメージ名]
コンテナ名の変更
docker rename old_contena_name new_contena_name
ホスト<->コンテナ間のやりとり
sudo docker cp my.cnf <コンテナID>:/etc/my.cnf
Docker imageのtagを取得する方法
以下をbashrcに記載
function docker-taglist { curl -s https://registry.hub.docker.com/v1/repositories/$1/tags | sed "s/,/\n/g" | grep name | cut -d '"' -f 4 }
使い方
$ docker-taglist ubuntu
参考: DockerHubのイメージのタグ一覧をコマンドで取得する | Mazn.net
Dockerイメージのコピーと読み込み
コピー
docker save sample-image > sample-image.tar
読み込み
docker load < sample-image.tar
参考:Dockerでイメージをインポート・エクスポートする | UX MILK
Dockerからデバイスを読み込む方法
# docker run -it --device=/dev/video0:/dev/video0 --name test01 [image name] /bin/bash
自分のPCの場合はインカメがvideo0 , usbにさしたwebカメラがvideo1になっている。
第17回 Dockerで植物が育つ様子を自動録画してみよう――その1 (2/2) - ITmedia エンタープライズ
DockerからGUIを表示する方法
1.$ xhost +
Start a GUI-Application as root in a Ubuntu Container - General Discussions - Docker Forums
docker/Tutorials/GUI - ROS Wiki
Dockerを用いたGUIアプリケーションの実行 | POSTD
Docker上でwebカメラを読み込みOpenCVのimshowなどをGUIで表示する方法
$ xhost +
$ nvidia-docker run -it -e DISPLAY=$DISPLAY -v /tmp/.X11-unix/:/tmp/.X11-unix --device=/dev/video1:/dev/video1 --name test1 output_disp
参考:docker run | Docker Documentation
おまけ1: pytorchでも動かしてみる
NVIDIA GPU CLOUDからイメージをダウンロード
exampleの実行
cd examples/mnist
pip install -r requirements.txt
export CUDA_VISIBLE_DEVICES=1
python main.py
動けばOK!
結果
Test set: Average loss: 0.1240, Accuracy: 9620/10000 (96%)
pytorchで線形回帰をかいてみる
参考: ChainerとPyTorchのコードを比較する - 線形回帰編
PyTorchでニューラルネットワーク、RNN、CNNを実装してみた – データ分析エンジニアが気まぐれに更新するブログ
matplotlibが表示されない時
[短文メモ]matplotlibで、showしても何も表示されない→backend設定を確認
おまけ2: chainerでも動かしてみる
docker pull chainer/chainer
pip install mock
TODO
参考
機械学習のお勉強(多層パーセプトロン)
人口知能で人の仕事は奪われるの?
My answer is ... the end of this blog ↓
教科書
GitHub - scikit-learn/scikit-learn: scikit-learn: machine learning in Python
単層ニューラルネットワーク(ADALINE)の復習
- 重みの更新式
- ,
- コスト関数(誤差平方和)J(w)
- ← ADLINEの場合こうなる
- y : クラスラベル、 a : activation,ニューロンの活性(線形関数)、 : 活性化関数
- 、
- クラスラベルの予測
多層パーセプトロン(Multi-Layer Perceptron )のアーキテクチャ
上図のように隠れ層がひとつ以上あるネットワークは「ディープ」人口ニューラルネットワークと呼ばれる。
隠れ層の数を増やすとどうなるの?
参考:Mind で Neural Network (準備編2) 順伝播・逆伝播 図解 - Qiita
MLPの学習のプロセス
入力層を出発として訓練データのパターンを順伝播し、出力生成。
出力を使ってコスト関数を用いて、誤差を計算。この誤差の最小化が目的。
誤差を逆伝播し、ネットワークの各重みに関する偏導関数を求め、モデルの更新
予測時はこの重みを用いて順伝播で出力を生成する。
つまり、学習の目的は最適関数を最小化するようなネットワークの重み(パラメータ)を計算すること。
順伝播によるニューラルネットワークの活性化
ここでのポイントは学習のために、活性化関数が微分可能でなければならない
複雑な問題を解く際は、非線形の活性化関数であるシグモイド関数等が使われる。
これを微分すると
ととても綺麗な形になるよ。
参考: シグモイド関数を微分する - のんびりしているエンジニアの日記
他にどんな活性化関数があるの?
このRelu関数がよく使わている。 But ... 2017/10~にswishと呼ばれる新たな活性化関数が発表され、効果がよさ気↓
式は と簡単。微分も簡単。
MLPを使って手書き文字を分類してみる
mnistのダウンロードとロード
MNIST handwritten digit database, Yann LeCun, Corinna Cortes and Chris Burges
import os import struct import numpy as np import gzip def load_mnist(path, kind='train'): """Load MNIST data from `path`""" labels_path = os.path.join(path, '%s-labels-idx1-ubyte.gz' % kind) images_path = os.path.join(path, '%s-images-idx3-ubyte.gz' % kind) with gzip.open(labels_path, 'rb') as lbpath: lbpath.read(8) buffer = lbpath.read() labels = np.frombuffer(buffer, dtype=np.uint8) with gzip.open(images_path, 'rb') as imgpath: imgpath.read(16) buffer = imgpath.read() images = np.frombuffer(buffer, dtype=np.uint8).reshape( len(labels), 784).astype(np.float64) return images, labels X_train, y_train = load_mnist('mnist/', kind='train') print('Rows: %d, columns: %d' % (X_train.shape[0], X_train.shape[1])) X_test, y_test = load_mnist('mnist/', kind='t10k') print('Rows: %d, columns: %d' % (X_test.shape[0], X_test.shape[1]))
表示結果
Rows: 60000, columns: 784 Rows: 10000, columns: 784
クラスラベルが0~9の画像を表示
import matplotlib.pyplot as plt fig, ax = plt.subplots(nrows=2, ncols=5, sharex=True, sharey=True,) ax = ax.flatten() for i in range(10): img = X_train[y_train == i][0].reshape(28, 28) ax[i].imshow(img, cmap='Greys', interpolation='nearest') ax[0].set_xticks([]) ax[0].set_yticks([]) plt.tight_layout() # plt.savefig('./figures/mnist_all.png', dpi=300) plt.show()
クラスラベルは7の画像を表示
fig, ax = plt.subplots(nrows=5, ncols=5, sharex=True, sharey=True,) ax = ax.flatten() for i in range(25): img = X_train[y_train == 7][i].reshape(28, 28) ax[i].imshow(img, cmap='Greys', interpolation='nearest') ax[0].set_xticks([]) ax[0].set_yticks([]) plt.tight_layout() # plt.savefig('./figures/mnist_7.png', dpi=300) plt.show()
前処理、モデル構築を行う上で、ここのデータの特性をしることがとても重要!!!
多層パーセプトロンの実装
import numpy as np from scipy.special import expit import sys class NeuralNetMLP(object): """ Feedforward neural network / Multi-layer perceptron classifier. Parameters ------------ n_output : int Number of output units, should be equal to the number of unique class labels. n_features : int Number of features (dimensions) in the target dataset. Should be equal to the number of columns in the X array. n_hidden : int (default: 30) Number of hidden units. l1 : float (default: 0.0) Lambda value for L1-regularization. No regularization if l1=0.0 (default) l2 : float (default: 0.0) Lambda value for L2-regularization. No regularization if l2=0.0 (default) epochs : int (default: 500) Number of passes over the training set. eta : float (default: 0.001) Learning rate. alpha : float (default: 0.0) Momentum constant. Factor multiplied with the gradient of the previous epoch t-1 to improve learning speed w(t) := w(t) - (grad(t) + alpha*grad(t-1)) decrease_const : float (default: 0.0) Decrease constant. Shrinks the learning rate after each epoch via eta / (1 + epoch*decrease_const) shuffle : bool (default: True) Shuffles training data every epoch if True to prevent circles. minibatches : int (default: 1) Divides training data into k minibatches for efficiency. Normal gradient descent learning if k=1 (default). random_state : int (default: None) Set random state for shuffling and initializing the weights. Attributes ----------- cost_ : list Sum of squared errors after each epoch. """ def __init__(self, n_output, n_features, n_hidden=30, l1=0.0, l2=0.0, epochs=500, eta=0.001, alpha=0.0, decrease_const=0.0, shuffle=True, minibatches=1, random_state=None): np.random.seed(random_state) self.n_output = n_output self.n_features = n_features self.n_hidden = n_hidden self.w1, self.w2 = self._initialize_weights() self.l1 = l1 self.l2 = l2 self.epochs = epochs self.eta = eta self.alpha = alpha self.decrease_const = decrease_const self.shuffle = shuffle self.minibatches = minibatches def _encode_labels(self, y, k): """Encode labels into one-hot representation Parameters ------------ y : array, shape = [n_samples] Target values. Returns ----------- onehot : array, shape = (n_labels, n_samples) """ onehot = np.zeros((k, y.shape[0])) for idx, val in enumerate(y): onehot[val, idx] = 1.0 return onehot def _initialize_weights(self): """Initialize weights with small random numbers.""" w1 = np.random.uniform(-1.0, 1.0, size=self.n_hidden*(self.n_features + 1)) w1 = w1.reshape(self.n_hidden, self.n_features + 1) w2 = np.random.uniform(-1.0, 1.0, size=self.n_output*(self.n_hidden + 1)) w2 = w2.reshape(self.n_output, self.n_hidden + 1) return w1, w2 def _sigmoid(self, z): """Compute logistic function (sigmoid) Uses scipy.special.expit to avoid overflow error for very small input values z. """ # return 1.0 / (1.0 + np.exp(-z)) return expit(z) def _sigmoid_gradient(self, z): """Compute gradient of the logistic function""" sg = self._sigmoid(z) return sg * (1.0 - sg) def _add_bias_unit(self, X, how='column'): """Add bias unit (column or row of 1s) to array at index 0""" if how == 'column': X_new = np.ones((X.shape[0], X.shape[1] + 1)) X_new[:, 1:] = X elif how == 'row': X_new = np.ones((X.shape[0] + 1, X.shape[1])) X_new[1:, :] = X else: raise AttributeError('`how` must be `column` or `row`') return X_new def _feedforward(self, X, w1, w2): """Compute feedforward step Parameters ----------- X : array, shape = [n_samples, n_features] Input layer with original features. w1 : array, shape = [n_hidden_units, n_features] Weight matrix for input layer -> hidden layer. w2 : array, shape = [n_output_units, n_hidden_units] Weight matrix for hidden layer -> output layer. Returns ---------- a1 : array, shape = [n_samples, n_features+1] Input values with bias unit. z2 : array, shape = [n_hidden, n_samples] Net input of hidden layer. a2 : array, shape = [n_hidden+1, n_samples] Activation of hidden layer. z3 : array, shape = [n_output_units, n_samples] Net input of output layer. a3 : array, shape = [n_output_units, n_samples] Activation of output layer. """ a1 = self._add_bias_unit(X, how='column') z2 = w1.dot(a1.T) a2 = self._sigmoid(z2) a2 = self._add_bias_unit(a2, how='row') z3 = w2.dot(a2) a3 = self._sigmoid(z3) return a1, z2, a2, z3, a3 def _L2_reg(self, lambda_, w1, w2): """Compute L2-regularization cost""" return (lambda_/2.0) * (np.sum(w1[:, 1:] ** 2) + np.sum(w2[:, 1:] ** 2)) def _L1_reg(self, lambda_, w1, w2): """Compute L1-regularization cost""" return (lambda_/2.0) * (np.abs(w1[:, 1:]).sum() + np.abs(w2[:, 1:]).sum()) def _get_cost(self, y_enc, output, w1, w2): """Compute cost function. Parameters ---------- y_enc : array, shape = (n_labels, n_samples) one-hot encoded class labels. output : array, shape = [n_output_units, n_samples] Activation of the output layer (feedforward) w1 : array, shape = [n_hidden_units, n_features] Weight matrix for input layer -> hidden layer. w2 : array, shape = [n_output_units, n_hidden_units] Weight matrix for hidden layer -> output layer. Returns --------- cost : float Regularized cost. """ term1 = -y_enc * (np.log(output)) term2 = (1.0 - y_enc) * np.log(1.0 - output) cost = np.sum(term1 - term2) L1_term = self._L1_reg(self.l1, w1, w2) L2_term = self._L2_reg(self.l2, w1, w2) cost = cost + L1_term + L2_term return cost def _get_gradient(self, a1, a2, a3, z2, y_enc, w1, w2): """ Compute gradient step using backpropagation. Parameters ------------ a1 : array, shape = [n_samples, n_features+1] Input values with bias unit. a2 : array, shape = [n_hidden+1, n_samples] Activation of hidden layer. a3 : array, shape = [n_output_units, n_samples] Activation of output layer. z2 : array, shape = [n_hidden, n_samples] Net input of hidden layer. y_enc : array, shape = (n_labels, n_samples) one-hot encoded class labels. w1 : array, shape = [n_hidden_units, n_features] Weight matrix for input layer -> hidden layer. w2 : array, shape = [n_output_units, n_hidden_units] Weight matrix for hidden layer -> output layer. Returns --------- grad1 : array, shape = [n_hidden_units, n_features] Gradient of the weight matrix w1. grad2 : array, shape = [n_output_units, n_hidden_units] Gradient of the weight matrix w2. """ # backpropagation sigma3 = a3 - y_enc z2 = self._add_bias_unit(z2, how='row') sigma2 = w2.T.dot(sigma3) * self._sigmoid_gradient(z2) sigma2 = sigma2[1:, :] grad1 = sigma2.dot(a1) grad2 = sigma3.dot(a2.T) # regularize grad1[:, 1:] += self.l2 * w1[:, 1:] grad1[:, 1:] += self.l1 * np.sign(w1[:, 1:]) grad2[:, 1:] += self.l2 * w2[:, 1:] grad2[:, 1:] += self.l1 * np.sign(w2[:, 1:]) return grad1, grad2 def predict(self, X): """Predict class labels Parameters ----------- X : array, shape = [n_samples, n_features] Input layer with original features. Returns: ---------- y_pred : array, shape = [n_samples] Predicted class labels. """ if len(X.shape) != 2: raise AttributeError('X must be a [n_samples, n_features] array.\n' 'Use X[:,None] for 1-feature classification,' '\nor X[[i]] for 1-sample classification') a1, z2, a2, z3, a3 = self._feedforward(X, self.w1, self.w2) y_pred = np.argmax(z3, axis=0) return y_pred def fit(self, X, y, print_progress=False): """ Learn weights from training data. Parameters ----------- X : array, shape = [n_samples, n_features] Input layer with original features. y : array, shape = [n_samples] Target class labels. print_progress : bool (default: False) Prints progress as the number of epochs to stderr. Returns: ---------- self """ self.cost_ = [] X_data, y_data = X.copy(), y.copy() y_enc = self._encode_labels(y, self.n_output) delta_w1_prev = np.zeros(self.w1.shape) delta_w2_prev = np.zeros(self.w2.shape) for i in range(self.epochs): # adaptive learning rate self.eta /= (1 + self.decrease_const*i) if print_progress: sys.stderr.write('\rEpoch: %d/%d' % (i+1, self.epochs)) sys.stderr.flush() if self.shuffle: idx = np.random.permutation(y_data.shape[0]) X_data, y_enc = X_data[idx], y_enc[:, idx] mini = np.array_split(range(y_data.shape[0]), self.minibatches) for idx in mini: # feedforward a1, z2, a2, z3, a3 = self._feedforward(X_data[idx], self.w1, self.w2) cost = self._get_cost(y_enc=y_enc[:, idx], output=a3, w1=self.w1, w2=self.w2) self.cost_.append(cost) # compute gradient via backpropagation grad1, grad2 = self._get_gradient(a1=a1, a2=a2, a3=a3, z2=z2, y_enc=y_enc[:, idx], w1=self.w1, w2=self.w2) delta_w1, delta_w2 = self.eta * grad1, self.eta * grad2 self.w1 -= (delta_w1 + (self.alpha * delta_w1_prev)) self.w2 -= (delta_w2 + (self.alpha * delta_w2_prev)) delta_w1_prev, delta_w2_prev = delta_w1, delta_w2 return self
one-hot 表現
def _encode_labels(self, y, k): """Encode labels into one-hot representation Parameters ------------ y : array, shape = [n_samples] Target values. Returns ----------- onehot : array, shape = (n_labels, n_samples) """ onehot = np.zeros((k, y.shape[0])) for idx, val in enumerate(y): onehot[val, idx] = 1.0 return onehot
重みの初期化
def _initialize_weights(self): """Initialize weights with small random numbers.""" w1 = np.random.uniform(-1.0, 1.0, size=self.n_hidden*(self.n_features + 1)) w1 = w1.reshape(self.n_hidden, self.n_features + 1) w2 = np.random.uniform(-1.0, 1.0, size=self.n_output*(self.n_hidden + 1)) w2 = w2.reshape(self.n_output, self.n_hidden + 1) return w1, w2
ランダムに重みを初期化。
NumPyの使い方(12) 乱数、random - Remrinのpython攻略日記
ここが重要だったりする。非線形性が強く、局所解がたくさんあるため。
少ない画像から画像分類を学習させる方法(kerasで転移学習:fine tuning)
シグモイド関数とその微分
def _sigmoid(self, z): """Compute logistic function (sigmoid) Uses scipy.special.expit to avoid overflow error for very small input values z. """ # return 1.0 / (1.0 + np.exp(-z)) return expit(z) def _sigmoid_gradient(self, z): """Compute gradient of the logistic function""" sg = self._sigmoid(z) return sg * (1.0 - sg)
他にもたくさんの活性化関数があるよ
最新の性能の良い、活性化関数はswish。
参考:
活性化関数ReLUについてとReLU一族【追記あり】 - Qiita ← Good!!!
活性化関数のまとめ(ステップ、シグモイド、ReLU、ソフトマックス、恒等関数) - Qiita
順伝播
def _feedforward(self, X, w1, w2): """Compute feedforward step Parameters ----------- X : array, shape = [n_samples, n_features] Input layer with original features. w1 : array, shape = [n_hidden_units, n_features] Weight matrix for input layer -> hidden layer. w2 : array, shape = [n_output_units, n_hidden_units] Weight matrix for hidden layer -> output layer. Returns ---------- a1 : array, shape = [n_samples, n_features+1] Input values with bias unit. z2 : array, shape = [n_hidden, n_samples] Net input of hidden layer. a2 : array, shape = [n_hidden+1, n_samples] Activation of hidden layer. z3 : array, shape = [n_output_units, n_samples] Net input of output layer. a3 : array, shape = [n_output_units, n_samples] Activation of output layer. """ a1 = self._add_bias_unit(X, how='column') z2 = w1.dot(a1.T) a2 = self._sigmoid(z2) a2 = self._add_bias_unit(a2, how='row') z3 = w2.dot(a2) a3 = self._sigmoid(z3) return a1, z2, a2, z3, a3
L1正規化、L2正規化
def _L2_reg(self, lambda_, w1, w2): """Compute L2-regularization cost""" return (lambda_/2.0) * (np.sum(w1[:, 1:] ** 2) + np.sum(w2[:, 1:] ** 2)) def _L1_reg(self, lambda_, w1, w2): """Compute L1-regularization cost""" return (lambda_/2.0) * (np.abs(w1[:, 1:]).sum() + np.abs(w2[:, 1:]).sum())
参考:
RでL1 / L2正則化を実践する - 六本木で働くデータサイエンティストのブログ
コスト関数
ロジスティック関数
]
参考: ロジスティック回帰のコスト関数を眺める - y_uti のブログ
def _get_cost(self, y_enc, output, w1, w2): """Compute cost function. Parameters ---------- y_enc : array, shape = (n_labels, n_samples) one-hot encoded class labels. output : array, shape = [n_output_units, n_samples] Activation of the output layer (feedforward) w1 : array, shape = [n_hidden_units, n_features] Weight matrix for input layer -> hidden layer. w2 : array, shape = [n_output_units, n_hidden_units] Weight matrix for hidden layer -> output layer. Returns --------- cost : float Regularized cost. """ term1 = -y_enc * (np.log(output)) term2 = (1.0 - y_enc) * np.log(1.0 - output) cost = np.sum(term1 - term2) L1_term = self._L1_reg(self.l1, w1, w2) L2_term = self._L2_reg(self.l2, w1, w2) cost = cost + L1_term + L2_term return cost
誤差逆伝播
上記のコスト関数を最小化することが目的であるので、ネットワークのすべての層の重み事に、行列wの偏微分係数を計算する必要がある。
ここで誤差逆伝播を用いると、コスト関数を最小化するための偏微分係数が計算できる。
w は複数の行列で構成されている ↓
誤差逆伝播の計算方法
フォワードプロパゲーション
フォワードプロパゲーションの出力とラベルにより、誤差ベクトルを計算(証明は省略)
- (*は要素ごとの掛け算)
- (*は要素ごとの掛け算)
コスト関数の変微分係数を求める(正規化なしバージョン)
重みの更新
参考: Pythonで 多層パーセプトロン を実装する | ZABURO app
def _get_gradient(self, a1, a2, a3, z2, y_enc, w1, w2): """ Compute gradient step using backpropagation. Parameters ------------ a1 : array, shape = [n_samples, n_features+1] Input values with bias unit. a2 : array, shape = [n_hidden+1, n_samples] Activation of hidden layer. a3 : array, shape = [n_output_units, n_samples] Activation of output layer. z2 : array, shape = [n_hidden, n_samples] Net input of hidden layer. y_enc : array, shape = (n_labels, n_samples) one-hot encoded class labels. w1 : array, shape = [n_hidden_units, n_features] Weight matrix for input layer -> hidden layer. w2 : array, shape = [n_output_units, n_hidden_units] Weight matrix for hidden layer -> output layer. Returns --------- grad1 : array, shape = [n_hidden_units, n_features] Gradient of the weight matrix w1. grad2 : array, shape = [n_output_units, n_hidden_units] Gradient of the weight matrix w2. """ # backpropagation sigma3 = a3 - y_enc z2 = self._add_bias_unit(z2, how='row') sigma2 = w2.T.dot(sigma3) * self._sigmoid_gradient(z2) sigma2 = sigma2[1:, :] grad1 = sigma2.dot(a1) grad2 = sigma3.dot(a2.T) # regularize grad1[:, 1:] += self.l2 * w1[:, 1:] grad1[:, 1:] += self.l1 * np.sign(w1[:, 1:]) grad2[:, 1:] += self.l2 * w2[:, 1:] grad2[:, 1:] += self.l1 * np.sign(w2[:, 1:]) return grad1, grad2
誤差逆伝播に対する直感を養う
自動微分(順伝播、逆伝播)の考え方↓ ものすごくわかりやすい!
計算グラフの微積分:バックプロパゲーションを理解する | POSTD
一言で言うと、誤差逆伝播を用いると計算コストが低くなる。
参考: 誤差逆伝播法を計算グラフを使って分かりやすく解説する - DeepAge
予測
def predict(self, X): """Predict class labels Parameters ----------- X : array, shape = [n_samples, n_features] Input layer with original features. Returns: ---------- y_pred : array, shape = [n_samples] Predicted class labels. """ if len(X.shape) != 2: raise AttributeError('X must be a [n_samples, n_features] array.\n' 'Use X[:,None] for 1-feature classification,' '\nor X[[i]] for 1-sample classification') a1, z2, a2, z3, a3 = self._feedforward(X, self.w1, self.w2) y_pred = np.argmax(z3, axis=0) return y_pred
最後argmaxで予測ラベルを算出しているが、softmaxを用いるとそれぞれのクラスの確率を出すことも可能。
参考: Softmaxって何をしてるの? - 画像処理とか機械学習とか
データのシャッフル
if self.shuffle: idx = np.random.permutation(y_data.shape[0]) X_data, y_enc = X_data[idx], y_enc[:, idx]
トレーニングデータをシャッフルすることでアルゴリズムを循環しないようにする
適応学習率
# adaptive learning rate self.eta /= (1 + self.decrease_const*i)
参考: 勾配降下法の最適化アルゴリズムを概観する | POSTD
重みの更新方法(勾配法)
delta_w1, delta_w2 = self.eta * grad1, self.eta * grad2 self.w1 -= (delta_w1 + (self.alpha * delta_w1_prev)) self.w2 -= (delta_w2 + (self.alpha * delta_w2_prev)) delta_w1_prev, delta_w2_prev = delta_w1, delta_w2
-
Momentum
参考:
勾配降下法の最適化アルゴリズムを概観する | POSTD ←Good!!!
AdaGrad, RMSProp, Adam, ND-Adam, AMSGrad - Qiita
最適化手法について—SGDからYellowFinまで— | moskomule log
トレーニング
nn = NeuralNetMLP(n_output=10, n_features=X_train.shape[1], n_hidden=50, l2=0.1, l1=0.0, epochs=1000, eta=0.001, alpha=0.001, decrease_const=0.00001, minibatches=50, shuffle=True, random_state=1) nn.fit(X_train, y_train, print_progress=True)

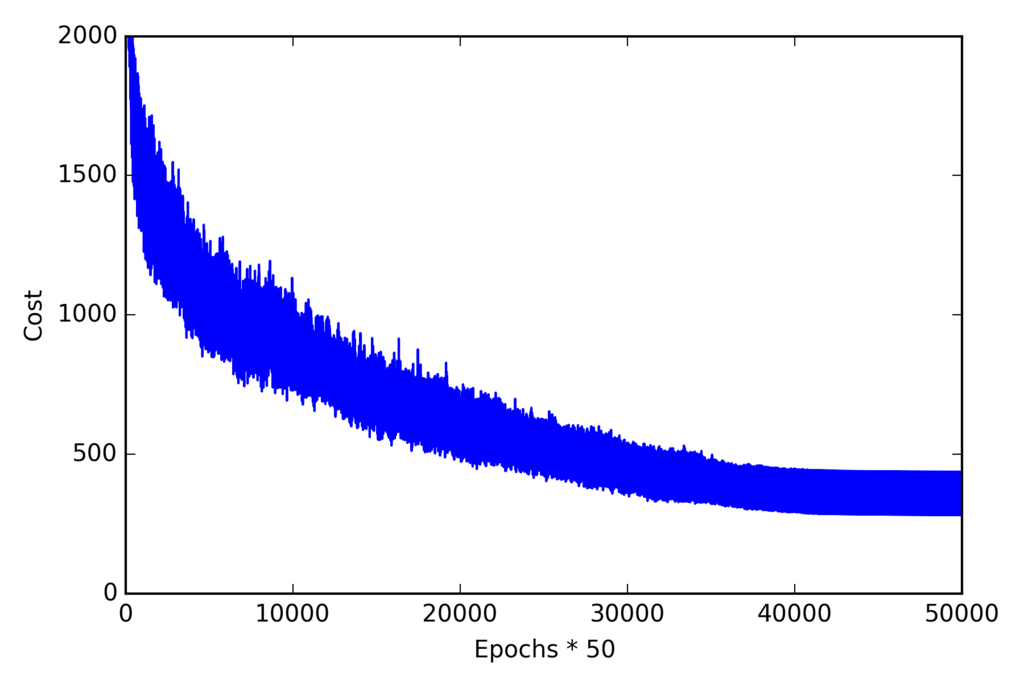

コスト関数の推移
import matplotlib.pyplot as plt plt.plot(range(len(nn.cost_)), nn.cost_) plt.ylim([0, 2000]) plt.ylabel('Cost') plt.xlabel('Epochs * 50') plt.tight_layout() # plt.savefig('./figures/cost.png', dpi=300) plt.show()
ミニバッチごとに平均化したコスト関数の推移
batches = np.array_split(range(len(nn.cost_)), 1000) cost_ary = np.array(nn.cost_) cost_avgs = [np.mean(cost_ary[i]) for i in batches] plt.plot(range(len(cost_avgs)), cost_avgs, color='red') plt.ylim([0, 2000]) plt.ylabel('Cost') plt.xlabel('Epochs') plt.tight_layout() #plt.savefig('./figures/cost2.png', dpi=300) plt.show()
モデルの性能
y_train_pred = nn.predict(X_train) if sys.version_info < (3, 0): acc = ((np.sum(y_train == y_train_pred, axis=0)).astype('float') / X_train.shape[0]) else: acc = np.sum(y_train == y_train_pred, axis=0) / X_train.shape[0] print('Training accuracy: %.2f%%' % (acc * 100)) y_test_pred = nn.predict(X_test) if sys.version_info < (3, 0): acc = ((np.sum(y_test == y_test_pred, axis=0)).astype('float') / X_test.shape[0]) else: acc = np.sum(y_test == y_test_pred, axis=0) / X_test.shape[0] print('Test accuracy: %.2f%%' % (acc * 100))
結果
Training accuracy: 97.59% Test accuracy: 95.62%
上記結果からわずかに過学習していることがわかる。
パラメータの最適化に関して、ベイズ的最適化をためしてみたい。
参考: ベイズ的最適化・実験計画法のお勉強 - 空飛ぶロボットのつくりかた
ベイズ的最適化(Bayesian Optimization)の入門とその応用
予測結果を見てみる
miscl_img = X_test[y_test != y_test_pred][:25] correct_lab = y_test[y_test != y_test_pred][:25] miscl_lab = y_test_pred[y_test != y_test_pred][:25] fig, ax = plt.subplots(nrows=5, ncols=5, sharex=True, sharey=True,) ax = ax.flatten() for i in range(25): img = miscl_img[i].reshape(28, 28) ax[i].imshow(img, cmap='Greys', interpolation='nearest') ax[i].set_title('%d) t: %d p: %d' % (i+1, correct_lab[i], miscl_lab[i])) ax[0].set_xticks([]) ax[0].set_yticks([]) plt.tight_layout() # plt.savefig('./figures/mnist_miscl.png', dpi=300) plt.show()
ネットワークのデバッグ
ニューラルネットワークの実装をする際、かなり複雑になるため、逆伝播が正しく実装されているかを手動で確認できると安心。
方法は、解析的な勾配と数値勾配の比較になる。
以下の図のように数値的に近似された勾配と比較する
近似式 :
比較の仕方 : 正規化されたL2ベクトルノルムが計算することが推奨
- 相対誤差
比較時のしきい値はモデルに依存するため、適切に設定する必要がある
参考: ノルムの意味とL1,L2,L∞ノルム | 高校数学の美しい物語
実装
import numpy as np from scipy.special import expit import sys class MLPGradientCheck(object): """ Feedforward neural network / Multi-layer perceptron classifier. Parameters ------------ n_output : int Number of output units, should be equal to the number of unique class labels. n_features : int Number of features (dimensions) in the target dataset. Should be equal to the number of columns in the X array. n_hidden : int (default: 30) Number of hidden units. l1 : float (default: 0.0) Lambda value for L1-regularization. No regularization if l1=0.0 (default) l2 : float (default: 0.0) Lambda value for L2-regularization. No regularization if l2=0.0 (default) epochs : int (default: 500) Number of passes over the training set. eta : float (default: 0.001) Learning rate. alpha : float (default: 0.0) Momentum constant. Factor multiplied with the gradient of the previous epoch t-1 to improve learning speed w(t) := w(t) - (grad(t) + alpha*grad(t-1)) decrease_const : float (default: 0.0) Decrease constant. Shrinks the learning rate after each epoch via eta / (1 + epoch*decrease_const) shuffle : bool (default: False) Shuffles training data every epoch if True to prevent circles. minibatches : int (default: 1) Divides training data into k minibatches for efficiency. Normal gradient descent learning if k=1 (default). random_state : int (default: None) Set random state for shuffling and initializing the weights. Attributes ----------- cost_ : list Sum of squared errors after each epoch. """ def __init__(self, n_output, n_features, n_hidden=30, l1=0.0, l2=0.0, epochs=500, eta=0.001, alpha=0.0, decrease_const=0.0, shuffle=True, minibatches=1, random_state=None): np.random.seed(random_state) self.n_output = n_output self.n_features = n_features self.n_hidden = n_hidden self.w1, self.w2 = self._initialize_weights() self.l1 = l1 self.l2 = l2 self.epochs = epochs self.eta = eta self.alpha = alpha self.decrease_const = decrease_const self.shuffle = shuffle self.minibatches = minibatches def _encode_labels(self, y, k): """Encode labels into one-hot representation Parameters ------------ y : array, shape = [n_samples] Target values. Returns ----------- onehot : array, shape = (n_labels, n_samples) """ onehot = np.zeros((k, y.shape[0])) for idx, val in enumerate(y): onehot[val, idx] = 1.0 return onehot def _initialize_weights(self): """Initialize weights with small random numbers.""" w1 = np.random.uniform(-1.0, 1.0, size=self.n_hidden*(self.n_features + 1)) w1 = w1.reshape(self.n_hidden, self.n_features + 1) w2 = np.random.uniform(-1.0, 1.0, size=self.n_output*(self.n_hidden + 1)) w2 = w2.reshape(self.n_output, self.n_hidden + 1) return w1, w2 def _sigmoid(self, z): """Compute logistic function (sigmoid) Uses scipy.special.expit to avoid overflow error for very small input values z. """ # return 1.0 / (1.0 + np.exp(-z)) return expit(z) def _sigmoid_gradient(self, z): """Compute gradient of the logistic function""" sg = self._sigmoid(z) return sg * (1.0 - sg) def _add_bias_unit(self, X, how='column'): """Add bias unit (column or row of 1s) to array at index 0""" if how == 'column': X_new = np.ones((X.shape[0], X.shape[1] + 1)) X_new[:, 1:] = X elif how == 'row': X_new = np.ones((X.shape[0]+1, X.shape[1])) X_new[1:, :] = X else: raise AttributeError('`how` must be `column` or `row`') return X_new def _feedforward(self, X, w1, w2): """Compute feedforward step Parameters ----------- X : array, shape = [n_samples, n_features] Input layer with original features. w1 : array, shape = [n_hidden_units, n_features] Weight matrix for input layer -> hidden layer. w2 : array, shape = [n_output_units, n_hidden_units] Weight matrix for hidden layer -> output layer. Returns ---------- a1 : array, shape = [n_samples, n_features+1] Input values with bias unit. z2 : array, shape = [n_hidden, n_samples] Net input of hidden layer. a2 : array, shape = [n_hidden+1, n_samples] Activation of hidden layer. z3 : array, shape = [n_output_units, n_samples] Net input of output layer. a3 : array, shape = [n_output_units, n_samples] Activation of output layer. """ a1 = self._add_bias_unit(X, how='column') z2 = w1.dot(a1.T) a2 = self._sigmoid(z2) a2 = self._add_bias_unit(a2, how='row') z3 = w2.dot(a2) a3 = self._sigmoid(z3) return a1, z2, a2, z3, a3 def _L2_reg(self, lambda_, w1, w2): """Compute L2-regularization cost""" return (lambda_/2.0) * (np.sum(w1[:, 1:] ** 2) + np.sum(w2[:, 1:] ** 2)) def _L1_reg(self, lambda_, w1, w2): """Compute L1-regularization cost""" return (lambda_/2.0) * (np.abs(w1[:, 1:]).sum() + np.abs(w2[:, 1:]).sum()) def _get_cost(self, y_enc, output, w1, w2): """Compute cost function. Parameters ---------- y_enc : array, shape = (n_labels, n_samples) one-hot encoded class labels. output : array, shape = [n_output_units, n_samples] Activation of the output layer (feedforward) w1 : array, shape = [n_hidden_units, n_features] Weight matrix for input layer -> hidden layer. w2 : array, shape = [n_output_units, n_hidden_units] Weight matrix for hidden layer -> output layer. Returns --------- cost : float Regularized cost. """ term1 = -y_enc * (np.log(output)) term2 = (1.0 - y_enc) * np.log(1.0 - output) cost = np.sum(term1 - term2) L1_term = self._L1_reg(self.l1, w1, w2) L2_term = self._L2_reg(self.l2, w1, w2) cost = cost + L1_term + L2_term return cost def _get_gradient(self, a1, a2, a3, z2, y_enc, w1, w2): """ Compute gradient step using backpropagation. Parameters ------------ a1 : array, shape = [n_samples, n_features+1] Input values with bias unit. a2 : array, shape = [n_hidden+1, n_samples] Activation of hidden layer. a3 : array, shape = [n_output_units, n_samples] Activation of output layer. z2 : array, shape = [n_hidden, n_samples] Net input of hidden layer. y_enc : array, shape = (n_labels, n_samples) one-hot encoded class labels. w1 : array, shape = [n_hidden_units, n_features] Weight matrix for input layer -> hidden layer. w2 : array, shape = [n_output_units, n_hidden_units] Weight matrix for hidden layer -> output layer. Returns --------- grad1 : array, shape = [n_hidden_units, n_features] Gradient of the weight matrix w1. grad2 : array, shape = [n_output_units, n_hidden_units] Gradient of the weight matrix w2. """ # backpropagation sigma3 = a3 - y_enc z2 = self._add_bias_unit(z2, how='row') sigma2 = w2.T.dot(sigma3) * self._sigmoid_gradient(z2) sigma2 = sigma2[1:, :] grad1 = sigma2.dot(a1) grad2 = sigma3.dot(a2.T) # regularize grad1[:, 1:] += self.l2 * w1[:, 1:] grad1[:, 1:] += self.l1 * np.sign(w1[:, 1:]) grad2[:, 1:] += self.l2 * w2[:, 1:] grad2[:, 1:] += self.l1 * np.sign(w2[:, 1:]) return grad1, grad2 def _gradient_checking(self, X, y_enc, w1, w2, epsilon, grad1, grad2): """ Apply gradient checking (for debugging only) Returns --------- relative_error : float Relative error between the numerically approximated gradients and the backpropagated gradients. """ num_grad1 = np.zeros(np.shape(w1)) epsilon_ary1 = np.zeros(np.shape(w1)) for i in range(w1.shape[0]): for j in range(w1.shape[1]): epsilon_ary1[i, j] = epsilon a1, z2, a2, z3, a3 = self._feedforward(X, w1 - epsilon_ary1, w2) cost1 = self._get_cost(y_enc, a3, w1-epsilon_ary1, w2) a1, z2, a2, z3, a3 = self._feedforward(X, w1 + epsilon_ary1, w2) cost2 = self._get_cost(y_enc, a3, w1 + epsilon_ary1, w2) num_grad1[i, j] = (cost2 - cost1) / (2.0 * epsilon) epsilon_ary1[i, j] = 0 num_grad2 = np.zeros(np.shape(w2)) epsilon_ary2 = np.zeros(np.shape(w2)) for i in range(w2.shape[0]): for j in range(w2.shape[1]): epsilon_ary2[i, j] = epsilon a1, z2, a2, z3, a3 = self._feedforward(X, w1, w2 - epsilon_ary2) cost1 = self._get_cost(y_enc, a3, w1, w2 - epsilon_ary2) a1, z2, a2, z3, a3 = self._feedforward(X, w1, w2 + epsilon_ary2) cost2 = self._get_cost(y_enc, a3, w1, w2 + epsilon_ary2) num_grad2[i, j] = (cost2 - cost1) / (2.0 * epsilon) epsilon_ary2[i, j] = 0 num_grad = np.hstack((num_grad1.flatten(), num_grad2.flatten())) grad = np.hstack((grad1.flatten(), grad2.flatten())) norm1 = np.linalg.norm(num_grad - grad) norm2 = np.linalg.norm(num_grad) norm3 = np.linalg.norm(grad) relative_error = norm1 / (norm2 + norm3) return relative_error def predict(self, X): """Predict class labels Parameters ----------- X : array, shape = [n_samples, n_features] Input layer with original features. Returns: ---------- y_pred : array, shape = [n_samples] Predicted class labels. """ if len(X.shape) != 2: raise AttributeError('X must be a [n_samples, n_features] array.\n' 'Use X[:,None] for 1-feature classification,' '\nor X[[i]] for 1-sample classification') a1, z2, a2, z3, a3 = self._feedforward(X, self.w1, self.w2) y_pred = np.argmax(z3, axis=0) return y_pred def fit(self, X, y, print_progress=False): """ Learn weights from training data. Parameters ----------- X : array, shape = [n_samples, n_features] Input layer with original features. y : array, shape = [n_samples] Target class labels. print_progress : bool (default: False) Prints progress as the number of epochs to stderr. Returns: ---------- self """ self.cost_ = [] X_data, y_data = X.copy(), y.copy() y_enc = self._encode_labels(y, self.n_output) delta_w1_prev = np.zeros(self.w1.shape) delta_w2_prev = np.zeros(self.w2.shape) for i in range(self.epochs): # adaptive learning rate self.eta /= (1 + self.decrease_const*i) if print_progress: sys.stderr.write('\rEpoch: %d/%d' % (i+1, self.epochs)) sys.stderr.flush() if self.shuffle: idx = np.random.permutation(y_data.shape[0]) X_data, y_enc = X_data[idx], y_enc[idx] mini = np.array_split(range(y_data.shape[0]), self.minibatches) for idx in mini: # feedforward a1, z2, a2, z3, a3 = self._feedforward(X[idx], self.w1, self.w2) cost = self._get_cost(y_enc=y_enc[:, idx], output=a3, w1=self.w1, w2=self.w2) self.cost_.append(cost) # compute gradient via backpropagation grad1, grad2 = self._get_gradient(a1=a1, a2=a2, a3=a3, z2=z2, y_enc=y_enc[:, idx], w1=self.w1, w2=self.w2) # start gradient checking grad_diff = self._gradient_checking(X=X_data[idx], y_enc=y_enc[:, idx], w1=self.w1, w2=self.w2, epsilon=1e-5, grad1=grad1, grad2=grad2) if grad_diff <= 1e-7: print('Ok: %s' % grad_diff) elif grad_diff <= 1e-4: print('Warning: %s' % grad_diff) else: print('PROBLEM: %s' % grad_diff) # update weights; [alpha * delta_w_prev] for momentum learning delta_w1, delta_w2 = self.eta * grad1, self.eta * grad2 self.w1 -= (delta_w1 + (self.alpha * delta_w1_prev)) self.w2 -= (delta_w2 + (self.alpha * delta_w2_prev)) delta_w1_prev, delta_w2_prev = delta_w1, delta_w2 return self nn_check = MLPGradientCheck(n_output=10, n_features=X_train.shape[1], n_hidden=10, l2=0.0, l1=0.0, epochs=10, eta=0.001, alpha=0.0, decrease_const=0.0, minibatches=1, shuffle=False, random_state=1) nn_check.fit(X_train[:5], y_train[:5], print_progress=False)
結果
Ok: 2.55068505986e-10 Ok: 2.93547837023e-10 Ok: 2.37449571314e-10 Ok: 3.08194323691e-10 Ok: 3.38249440642e-10 Ok: 3.57890221135e-10 Ok: 2.19231256383e-10 Ok: 2.36583740198e-10 Ok: 3.43584860701e-10 Ok: 2.13345208113e-10
Tips
チェックのコードはできるだけシンプルに
計算コストが高いためデバッグ目的のみで使用しよう
ニューラルネットの収束
以下の図のように次元数が多いため、コスト局面は複雑で適切に学習を行うためには、パラメータ(学習率)の調節が重要。
おまけ
手書き文字のデータを見ると文字が歪んでいたり、傾いていたりする
歪補正(deskew)
共分散の大きさを用いて、アフィン変換で歪みを補正。
データの前処理でこのようなことをおこなうことで学習結果がよくなったりする。
参考:
teaching-ncso/91-mnist-deskew.ipynb at master · tmbdev/teaching-ncso · GitHub
3層パーセプトロン
参考: Pythonで3層パーセプトロンの誤差逆伝播を実装してみる - TadaoYamaokaの日記
感想
深層学習で認識や音声など様々な分野での性能は向上するが、様々な汎用的なタスクをひとつのモデルでこなすのは現状は難しく、人間による前処理やタスクに適切なモデル選択、設計が必要。
なので、思考や動作を伴う汎用、複合的なタスクをロボットやシステムができるようになるのはもう少し先という印象。
おまけ
CNN
定番のConvolutional Neural Networkをゼロから理解する - DeepAge
RNN
RNN:時系列データを扱うRecurrent Neural Networksとは - DeepAge
全体参考
機械学習のお勉強(Webアプリケーション)
教科書
robonchu.hatenablog.com の内容を実行している前提
例:http://raschkas.pythonanywhere.com/results
学習済みのscikit-learn推定器をシリアライズする
モデルの永続化のひとつの方法はpickleを使う
Numpyが含まれている場合はjoblibのほうが効率的らしい
import pickle import os dest = os.path.join('movieclassifier', 'pkl_objects') if not os.path.exists(dest): os.makedirs(dest) pickle.dump(stop, open(os.path.join(dest, 'stopwords.pkl'), 'wb'), protocol=2) # 4) pickle.dump(clf, open(os.path.join(dest, 'classifier.pkl'), 'wb'), protocol=2) # 4)
デシリアライズ
import pickle import re import os from vectorizer import vect clf = pickle.load(open(os.path.join('pkl_objects', 'classifier.pkl'), 'rb')) import numpy as np label = {0:'negative', 1:'positive'} example = ['I love this movie'] X = vect.transform(example) print('Prediction: %s\nProbability: %.2f%%' %\ (label[clf.predict(X)[0]], clf.predict_proba(X).max()*100))
from sklearn.feature_extraction.text import HashingVectorizer import re import os import pickle cur_dir = os.path.dirname(__file__) stop = pickle.load(open( os.path.join(cur_dir, 'pkl_objects', 'stopwords.pkl'), 'rb')) def tokenizer(text): text = re.sub('<[^>]*>', '', text) emoticons = re.findall('(?::|;|=)(?:-)?(?:\)|\(|D|P)', text.lower()) text = re.sub('[\W]+', ' ', text.lower()) \ + ' '.join(emoticons).replace('-', '') tokenized = [w for w in text.split() if w not in stop] return tokenized vect = HashingVectorizer(decode_error='ignore', n_features=2**21, preprocessor=None, tokenizer=tokenizer)
SQLiteデータベースをセットアップ
Webアプリケーションの予測に対するユーザーからのフィードバックを収集する
SQLite
参考:
batteries included
pythonのbatteries includedの考え方: 標準ライブラリだけでも様々なことができる
参考: What “Batteries Included” Means | Musings of an Anonymous Geek
データベースの作成
batteries includedの考え方からsqlite3というSQLiteを操作できる標準APIがある
11.13. sqlite3 — SQLite データベースに対する DB-API 2.0 インタフェース — Python 2.7.14 ドキュメント
- データベースの作成
import sqlite3 import os if os.path.exists('reviews.sqlite'): os.remove('reviews.sqlite') conn = sqlite3.connect('reviews.sqlite') c = conn.cursor() c.execute('CREATE TABLE review_db (review TEXT, sentiment INTEGER, date TEXT)') example1 = 'I love this movie' c.execute("INSERT INTO review_db (review, sentiment, date) VALUES (?, ?, DATETIME('now'))", (example1, 1)) example2 = 'I disliked this movie' c.execute("INSERT INTO review_db (review, sentiment, date) VALUES (?, ?, DATETIME('now'))", (example2, 0)) conn.commit() conn.close()
- データベースの内容確認
conn = sqlite3.connect('reviews.sqlite') c = conn.cursor() c.execute("SELECT * FROM review_db WHERE date BETWEEN '2015-01-01 10:10:10' AND DATETIME('now')") results = c.fetchall() conn.close() print(results)
結果
[(u'I love this movie', 1, u'2017-11-26 01:06:38'), (u'I disliked this movie', 0, u'2017-11-26 01:06:38')]
Firefoxのバージョン 57.0ではSQLite Managerのpluginがつかえず...
FlaskでのWebアプリ開発
参考:
Quickstart — Flask Documentation (0.12)
[Python] 軽量WebフレームワークのFlaskに入門(準備、起動、HTML、静的ファイル、GET、POSTなど) - YoheiM .NET
なれるための単純な開発
- ディレクトリ構成
1st_flask_app_1/ ├── app.py <- メインのコード └── templates └── first_app.html <- webブラウザでレンダリングする静的なHTMLファイル
app.py
from flask import Flask, render_template app = Flask(__name__) @app.route('/') def index(): return render_template('first_app.html') if __name__ == '__main__': app.run(debug=True)
first_app.html
<!doctype html> <html> <head> <title>First app</title> </head> <body> <div> Hi, this is my first Flask web app! </div> </body> </html>
HTMLのわかりやすい参考: HTML | MDN
実行手順
python app.py
ブラウザでhttp://127.0.0.1:5000/にアクセス
「Hi, this is my first Flask web app! 」とでていることを確認
WTFormsでデータ収集
Flask にフォームがないから WTForms 使ってみた - present
下記のような名前を入力して挨拶をするものをつくる
1st_flask_app_2/ ├── app.py ├── static │ └── style.css └── templates ├── _formhelpers.html ├── first_app.html └── hello.html
app.py
from flask import Flask, render_template, request from wtforms import Form, TextAreaField, validators app = Flask(__name__) class HelloForm(Form): sayhello = TextAreaField('',[validators.DataRequired()]) @app.route('/') def index(): form = HelloForm(request.form) return render_template('first_app.html', form=form) @app.route('/hello', methods=['POST']) def hello(): form = HelloForm(request.form) if request.method == 'POST' and form.validate(): name = request.form['sayhello'] return render_template('hello.html', name=name) return render_template('first_app.html', form=form) if __name__ == '__main__': app.run(debug=True)
_formhelpers.html
Jinja2というテンプレートエンジンを用いている
{% macro render_field(field) %} <dt>{{ field.label }} <dd>{{ field(**kwargs)|safe }} {% if field.errors %} <ul class=errors> {% for error in field.errors %} <li>{{ error }}</li> {% endfor %} </ul> {% endif %} </dd> </dt> {% endmacro %}
style.css : CSS(cascading style sheets)ファイル
body { font-size: 2em; }
first_app.html
<!doctype html> <html> <head> <title>First app</title> <link rel="stylesheet" href="{{ url_for('static', filename='style.css') }}"> </head> <body> {% from "_formhelpers.html" import render_field %} <div>What's your name?</div> <form method=post action="/hello"> <dl> {{ render_field(form.sayhello) }} </dl> <input type=submit value='Say Hello' name='submit_btn'> </form> </body> </html>
hello.html
<!doctype html> <html> <head> <title>First app</title> <link rel="stylesheet" href="{{ url_for('static', filename='style.css') }}"> </head> <body> <div>Hello {{ name }}</div> </body> </html>
Jinja2
テンプレートエンジン. pythonの結果からHTMLを作成したいときなどに便利.
Welcome to Jinja2 — Jinja2 Documentation (2.11)
CSS(cascading style sheets)ファイル
HTMLドキュメントのルック&フィール(コンピュータの操作画面の見た目や操作感のこと)が指定できる
映画レビュー分類器をwebアプリとして実装
下記のようなレビューを書いて、その予測結果をフィードバックし、感謝を伝えるツールを作る
http://raschkas.pythonanywhere.com/results
- ディレクトリ構成
movieclassifier_with_update/ ├── app.py ├── pkl_objects │ ├── classifier.pkl │ └── stopwords.pkl ├── reviews.sqlite ├── static │ └── style.css ├── templates │ ├── _formhelpers.html │ ├── results.html │ ├── reviewform.html │ └── thanks.html ├── update.py └── vectorizer.py
app.py
from flask import Flask, render_template, request from wtforms import Form, TextAreaField, validators import pickle import sqlite3 import os import numpy as np # import HashingVectorizer from local dir from vectorizer import vect app = Flask(__name__) ######## Preparing the Classifier cur_dir = os.path.dirname(__file__) clf = pickle.load(open(os.path.join(cur_dir, 'pkl_objects', 'classifier.pkl'), 'rb')) db = os.path.join(cur_dir, 'reviews.sqlite') def classify(document): label = {0: 'negative', 1: 'positive'} X = vect.transform([document]) y = clf.predict(X)[0] proba = np.max(clf.predict_proba(X)) return label[y], proba def train(document, y): X = vect.transform([document]) clf.partial_fit(X, [y]) def sqlite_entry(path, document, y): conn = sqlite3.connect(path) c = conn.cursor() c.execute("INSERT INTO review_db (review, sentiment, date)"\ " VALUES (?, ?, DATETIME('now'))", (document, y)) conn.commit() conn.close() ######## Flask class ReviewForm(Form): moviereview = TextAreaField('', [validators.DataRequired(), validators.length(min=15)]) @app.route('/') def index(): form = ReviewForm(request.form) return render_template('reviewform.html', form=form) @app.route('/results', methods=['POST']) def results(): form = ReviewForm(request.form) if request.method == 'POST' and form.validate(): review = request.form['moviereview'] y, proba = classify(review) return render_template('results.html', content=review, prediction=y, probability=round(proba*100, 2)) return render_template('reviewform.html', form=form) @app.route('/thanks', methods=['POST']) def feedback(): feedback = request.form['feedback_button'] review = request.form['review'] prediction = request.form['prediction'] inv_label = {'negative': 0, 'positive': 1} y = inv_label[prediction] if feedback == 'Incorrect': y = int(not(y)) train(review, y) sqlite_entry(db, review, y) return render_template('thanks.html') if __name__ == '__main__': app.run(debug=True)
reviewform.html
<!doctype html> <html> <head> <title>Movie Classification</title> <link rel="stylesheet" href="{{ url_for('static', filename='style.css') }}"> </head> <body> <h2>Please enter your movie review:</h2> {% from "_formhelpers.html" import render_field %} <form method=post action="/results"> <dl> {{ render_field(form.moviereview, cols='30', rows='10') }} </dl> <div> <input type=submit value='Submit review' name='submit_btn'> </div> </form> </body> </html>
results.html
<!doctype html> <html> <head> <title>Movie Classification</title> <link rel="stylesheet" href="{{ url_for('static', filename='style.css') }}"> </head> <body> <h3>Your movie review:</h3> <div>{{ content }}</div> <h3>Prediction:</h3> <div>This movie review is <strong>{{ prediction }}</strong> (probability: {{ probability }}%).</div> <div id='button'> <form action="/thanks" method="post"> <input type=submit value='Correct' name='feedback_button'> <input type=submit value='Incorrect' name='feedback_button'> <input type=hidden value='{{ prediction }}' name='prediction'> <input type=hidden value='{{ content }}' name='review'> </form> </div> <div id='button'> <form action="/"> <input type=submit value='Submit another review'> </form> </div> </body> </html>
style.css
body{ width:600px; } .button{ padding-top: 20px; }
thanks.html
<!doctype html> <html> <head> <title>Movie Classification</title> <link rel="stylesheet" href="{{ url_for('static', filename='style.css') }}"> </head> <body> <h3>Thank you for your feedback!</h3> <div id='button'> <form action="/"> <input type=submit value='Submit another review'> </form> </div> </body> </html>
実行
python app.py
Webアプリケーションをパブ陸Webサーバーにデプロイ
これまでのアプリのローカルでのテストが完了すればパブリックでデプロイする
PythonAnywhere
Host, run, and code Python in the cloud: PythonAnywhere
アカウントの登録
Add a new web app
File Upload or do something
そうすれば<ユーザー名>.pythonanywhere.comでアクセスできる
参考:
Flask Tutorial (part 5) - deploying to PythonAnywhere - YouTube
Simple Flask Hosting: PythonAnywhere
映画レビュー分類器の更新
サーバーがクラッシュした際にデータを消えないようにするには更新されるたびにclfオブジェクトをシリアライズすることが考えられる。
しかし、ユーザーの数が増えるに従い、計算効率が悪くなる、また、同時に更新した際にはファイルが壊れるかもしれない。
なので、もうひとつの方法として、 SQLiteデータベースに収集されたフィードバックデータを使った予測モデルの更新 がある。
実装
update.py *
import pickle import sqlite3 import numpy as np import os # import HashingVectorizer from local dir from vectorizer import vect def update_model(db_path, model, batch_size=10000): conn = sqlite3.connect(db_path) c = conn.cursor() c.execute('SELECT * from review_db') results = c.fetchmany(batch_size) while results: data = np.array(results) X = data[:, 0] y = data[:, 1].astype(int) classes = np.array([0, 1]) X_train = vect.transform(X) model.partial_fit(X_train, y, classes=classes) results = c.fetchmany(batch_size) conn.close() return model cur_dir = os.path.dirname(__file__) clf = pickle.load(open(os.path.join(cur_dir, 'pkl_objects', 'classifier.pkl'), 'rb')) db = os.path.join(cur_dir, 'reviews.sqlite') clf = update_model(db_path=db, model=clf, batch_size=10000) # Uncomment the following lines if you are sure that # you want to update your classifier.pkl file # permanently. # pickle.dump(clf, open(os.path.join(cur_dir, # 'pkl_objects', 'classifier.pkl'), 'wb') # , protocol=4)
これをapp.pyで呼び出すようにする
以下の二箇所をapp.pyに追加
from update import update_model
if __name__ == '__main__' : clf = update_model(dp_path=db, model=clf, batch_size=10000)
softkineticをros(kinetic)で動かしみる
softkinetic(ToFセンサ)を3つゲットしたので動かしてみる
softkineticのSDKのダウンロード
アカウント登録
SDKのダウンロード:https://www.softkinetic.com/language/fr-BE/Support/Download/EntryId/517
~/.bashrcにpathを追加:export LD_LIBRARY_PATH=/opt/softkinetic/DepthSenseSDK/lib/:$LD_LIBRARY_PATH
rosのsoftkineticのpackageをインストール&demoの実行
branchをkinetic-devに
ワークスペースを作ってcatkin_make
source devel/setup.bash
roslaunch softkinetic_camera softkinetic_camera_demo.launch
イエイ、動いた。
これを使ってPCLのお勉強とNewロボットを作ろう。
Error: No space left on device
これが出たら以下の記事を参考に対処
jsk_recognition/install_softkinetic_camera.rst at master · jsk-ros-pkg/jsk_recognition · GitHub
Softkinetic node StreamingException with senz3D - ROS Answers: Open Source Q&A Forum
ln -s /opt/softkinetic/DepthSenseSDK/lib/libDepthSensePlugins.so.1 /opt/softkinetic/DepthSenseSDK/lib/libDepthSensePlugins.so ln -s /opt/softkinetic/DepthSenseSDK/lib/libDepthSense.so.1 /opt/softkinetic/DepthSenseSDK/lib/libDepthSense.so
をしないと行けない可能性あり。
